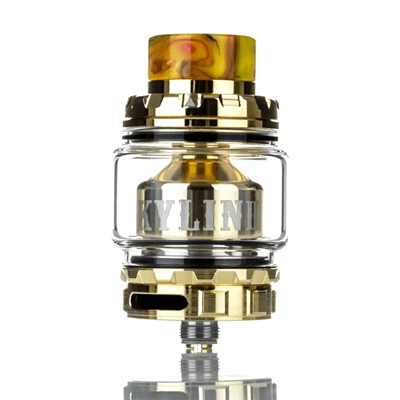

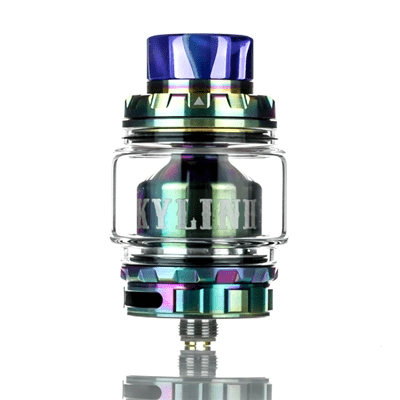

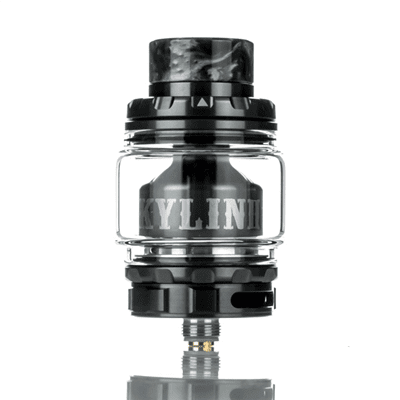

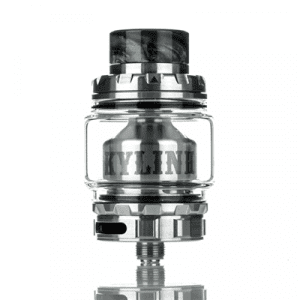

Vandy Vape Kylin V2 is the combination of the Kylin and Kylin Mini rebuildable tank atomizer with a modified build deck style with increased air flow and new adjustable juice flow. The threaded top cap has been replaced to a slide to open top fill design with 3ml and 5ml e juice capacity. The upgraded build deck is a curved post-less quad terminal with increased airflow and angled terminal slots. The dual adjustable airflow slots lead to a beveled air flow system. The Kylin V2 is a modernized version of the original based on the Kylin Mini.
The Vandy Vape Kylin V2 has a base diameter of 24mm and is 30mm at its widest point with the bubble glass section installed. The new top cap has a 11mm by 5mm juice fill port that leads to a 3ml standard glass capacity and 5ml bubbled glass capacity. The curved post-less, quad terminal build deck has four diagonally mounted hex screws that accommodate 2mm by 1.75mm terminal size. The base of the build deck features overall increased airflow through six 4mm by 1.5mm cutouts and eight centered 1mm air holes. The internal wicking port measures at a rounded 8mm by 3.5mm while the external wicking ports measures at 8mm by 2mm. The juice flow can be adjusted by threading the domed internal chamber. The dual adjustable 12mm by 2.5mm airflow leads into an internal beveled chamber. The Kylin V2 has a 24K gold plated Flathead contact point with the 510 threaded connection. This RTA comes with a 13mm Wide 810 Short Delrin drip tip and a 12mm Wide 810 Tapered Resin drip tip. Vandy Vape has included a coil lead guide and a pair of triple fused Claptons (28ga*3+38g) with an atomizer resistance of 0.41 ohm and 3mm ID. The Vandy Vape Kylin V2 24mm RTA is a successful culmination of the design improvements made through the years in one high quality package.
Product Features:
- 24mm Diameter Base
- 30mm at Widest Point
- Slide-To-Open Top Fill Design
- 11mm by 5mm Juice Fill Port
- 3ml Standard Capacity
- 5ml Maximum Capacity
- Curved Post-less Quad Terminal Build Deck
- 2mm by 1.75mm Terminal Slot Size
- Diagonally Mounted Hex Screws
- Six 4mm by 1.5mm Airflow Cutouts
- Eight Centered 1mm Air Holes
- Dual Wicking Port Cutouts
- 8mm by 3.5mm Internal
- 8mm by 2mm External
- Adjustable Juice Flow Control
- PEEK Insulator
- 2mm by 1.75mm Terminal Slot Size
- Dual Adjustable Airflow
- Beveled Air Flow System
- Fully Adjustable Airflow Ring
- 12mm by 2.5mm Each Airslot
- 24K Gold Plated 510 Contact
- 304 Stainless Steel and Glass Construction
- 810 Drip Tip
- 13mm Wide 810 Short Delrin Drip Tip
- 12mm Wide 810 Tapered Resin Drip Tip

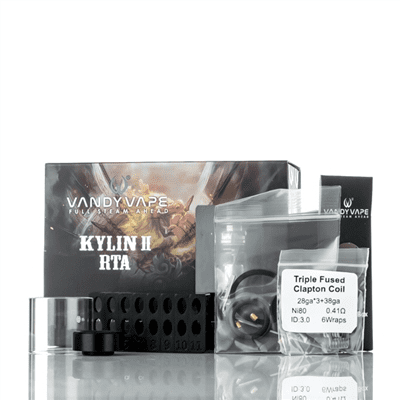

Product Includes:
- One Vandy Vape Kylin V2 RTA
- One Accessory Bag
- Triple Fused Clapton Coil
- Allen Key
- One Spare 3ml Glass Section
- One Coil Lead Guide
- One Resin Drip Tip
- Spare Part Pack
- User Manual
